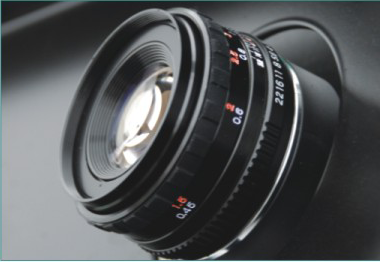

Technical Color high-resolution CCD image acquisition system
Use the color CCD image acquisition system to acquire the comprehensive information of red, green and blue color. The grain Sorter has the sensory ability of human eye, making better selection of materials , and satisfying the requirements better;
The maximum resolution is up to 0.15mm, can accurately identify small defects and spots on Raw materials, and the high-precision special lens ensures clear images.
Configuration of flexible and variable light source
Led lignting system with radiato, long service life, low energy consumption, good performance.
Different raw materials require different spectra, we customize the light source according to the need of customer.

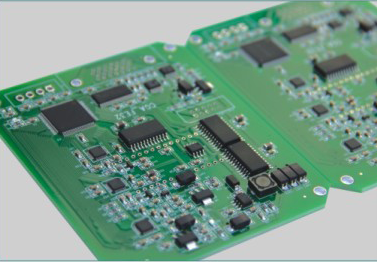

Dedicated image processing algorithm
According to the characteristics of material, use the shape and color combination algorithm.
For materials with complex colors, the machine sorts materials more directly and accurately by using HSL-changed color space sorting method.
Unique trough configuration
The special anodizing technology can ensure production volume as well as conformity with the international standard.
The machine can be equipped with cascade plate and narrow chute channel to meet the color sorting for various materials.

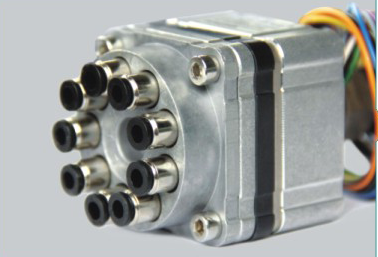

Use High-quality,high-frequency,long service life ejector,super low air consumption guaranteed the biggest capacity,excellent rejection output
For the different sizes and characteristics of material particle, use the solenoid valve of different sizes.

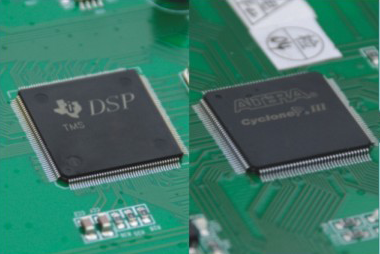

Excellent rejection rate (with a ratio)
Advanced image acquisition system + intelligent image processing algorithms + high-quality nozzle system = excellent elimination rate

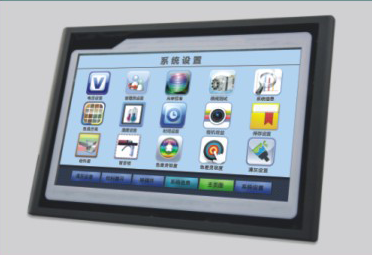

Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
