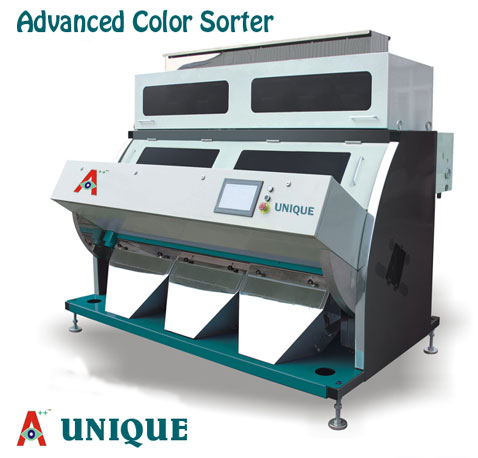

Advance Color Sorter Machine

Nullam euismod commodo


Technical Characteristics:

HIGH RELIABILITY

    With newly and more rational closed design of pulses machinery, for dust-proof this totally meet the requirements of the food machinery.

    The mechanical structure of pulses machinery is designed for reliability and stability, introducing the cooling system the service life and stability of the machinery

    The electrical and optical design is mean for simplicity, the optimized system structure reduces the complexity of the machine,and improves the reliability of the machine


ADVANCED CAMERA IMAGE ACQUISITION SYSTEM

Use 54-pixel high resolution liner CCD image sensor and high-precision dedicated lens to receive, which can distinguish the heterochromatic of 0.04 mm2 accurately.

Use the imported LED light source that features brightness, longer service life, more quality performance.


INTELLIGENT IMAGE PROCESSING ALGORITHMS

Use the intelligent algorithms to implement special treatment for the large region light yellow and spots, needle-size black specks etc.to improve sorting accuracy.


HIGH-QUALITY EJECTOR

Use High,-frequency, long service life ejecter,super long air guaranteed the biggest capacity, excellent rejection output


EXCELLENT FLIMINATION RATE(CARRYOVER RATE 10:1)

Advanced image acquisition system+intelligent image processing + high-quality nozzle system=excellent elimination rate


SIMPLE OPERATION,EASY TO LEARN AND USE

Simple optical system design, precise automatic correction system, combined with the well human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use


FLEXIBLE MODE,APPLICABLE TO A WIDE RANG

In view of the different rice, design the corresponding optimum operating mode a machine to achieve different rice color sorting

Model 6SXM-
144T
6SXM-
216T
6SXM-
288T
6SXM-
360T
6SXM-
432T
6SXM-
 504T
Product Output (t/h) 1.6 ~ 5
Sorting Accuarcy (%) ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99
Carryover Rate
(Bad: Good)
≥10:1 ≥10:1 ≥10:1 ≥10:1 ≥10:1 ≥10:1
Weight (kg) 570 700 850 1010 1145 1265
Resolution (mm2) 0.04 0.04 0.04 0.04 0.04 0.04
Power (kw) 1.4 1.8 2.2 2.6 3.0 4.5
Dimension
L*W*H  (mm*mm*mm)
1149
*1952
*1950
1463
*1952
*1950
1777
*1952
*1950
2091
*1952
*1950
2405
*1952
*1950
1719
*1952
*1950
Power Supply (V/Hz) 220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)

Examples of Sorting
